GTT’s Cool Guide to Understanding the R53 Cooling System

posted in: GTT Blog & News

The standard R53 supercharged Cooper S cooling system is actually quite conventional in its approach apart from just a couple of unusual design features. Foremost is the drive to the water pump. Unlike most cars (Cooper included) it is not run via belt and pulley, but directly off the back end of the supercharger. So if the SC is turning so must the water pump be right? Well yes it should be, but the gears in the tiny integral SC gearbox lose oil eventually due to leaking seals, then the gears/bearings destroy themselves very quickly leading initially to excessive SC noise, and eventually total loss of mesh between the 2 gears. No drive to water pump will blow the head gasket in minutes! …See MM recent SC article if you have these problems.

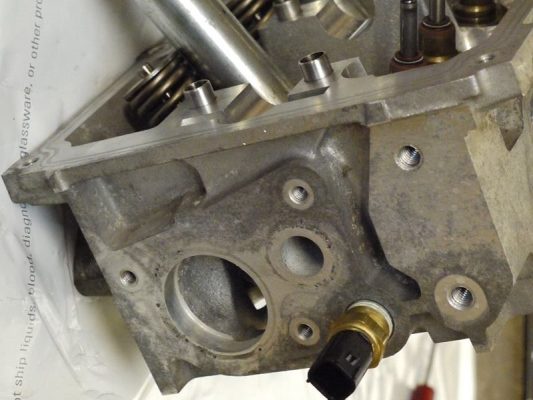

Being a supercharged engine it also features a pressurized header tank or expansion tank as it is correctly termed. It also features a thermostat housing mounted on its side directly bolted to the cylinder head, and a 2 speed fan that uses a high current resistor to achieve the low fan speed.
Ok before we get to the nitty gritty of common faults, why they occur and how to fix them, I thought I would list a few interesting ‘did you know’ facts about antifreeze and water that are often misunderstood.

  1. Pure water is a more efficient COOLANT than any antifreeze or antifreeze/water mix. Water is much better at taking heat out of the engine and losing it through the radiator. Hence why racing cars often don’t use antifreeze. However other products such as ‘Water Wetter’ are designed specifically for optimum cooling rather than freeze prevention. Antifreeze is not just ‘antifreeze’, it contains rust inhibitors and lubricants for water pump etc. And before you ask, yes you should run with antifreeze! Failure to use it followed by a sharp December freeze will probably crack your engine block!
  2. The best water to antifreeze ratio to achieve the LOWEST FREEZING POINT is 65% Antifreeze + 35% Water. But a 50/50 mix is probably the best compromise for reasons above.
  3. The boiling point of pure water is 100 deg C, (You knew that!) adding antifreeze raises the boiling point to around 105 deg C or more. This is great but is still not high enough. We need something else to increase the boiling point. Boiling is the point the fluid turns to steam and everything expands big time, throwing coolant out of the cap. -That other ‘special ingredient’ we need to increase boiling point being PRESSURE.
  4. If water is allowed to pressurize to 1 bar (15psi), it then boils at 120 deg C. At around 7psi the boiling point is around 108 deg C. Assuming no ‘pressure losing leaks’, the maximum pressure is controlled solely by the reservoir cap. Yes that little black lid thing is more important than you think…..More of that later.


This is the single most asked question. The reason being most people just ignore the cooling system unless they are either (A) stuck on the side of the road with a blown head gasket (system over pressurizing) or (B) the car is losing water even though the head gasket is ok.
The reasons for (B) seem to baffle many. There are a few simple reasons and relevant fixes. The first thing to confirm is no water leaks! These can come from many places …here are just 9 of them:-

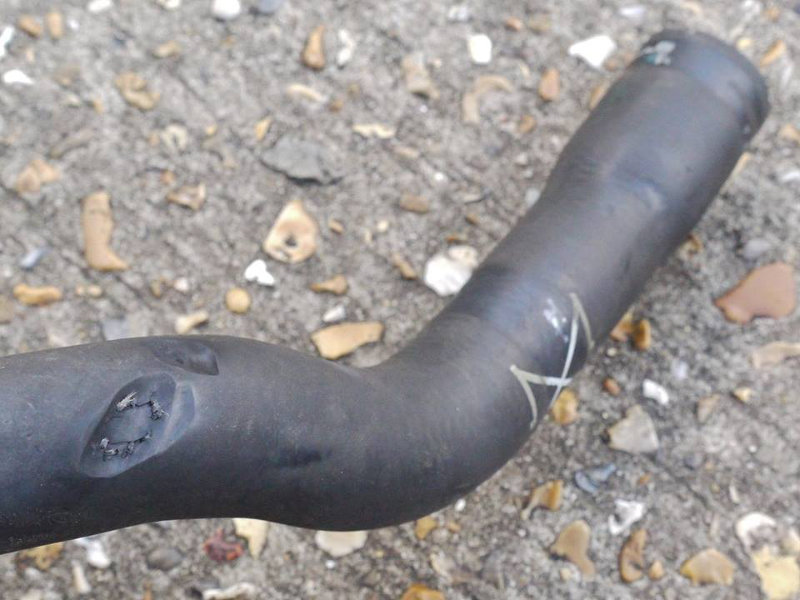

  • Split hose
  • Jubilee clips not done up or positioned correctly

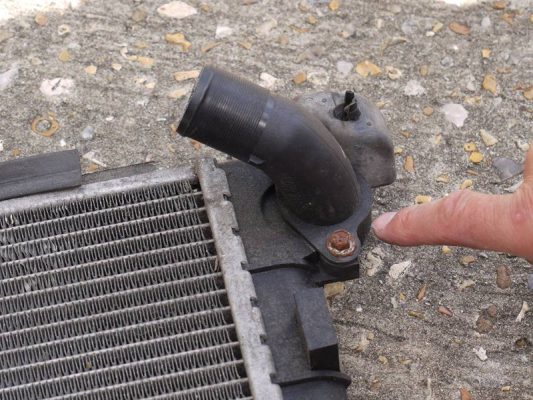

  • Leaking radiator ….see picture for common leak points
  • Leaking thermostat housing

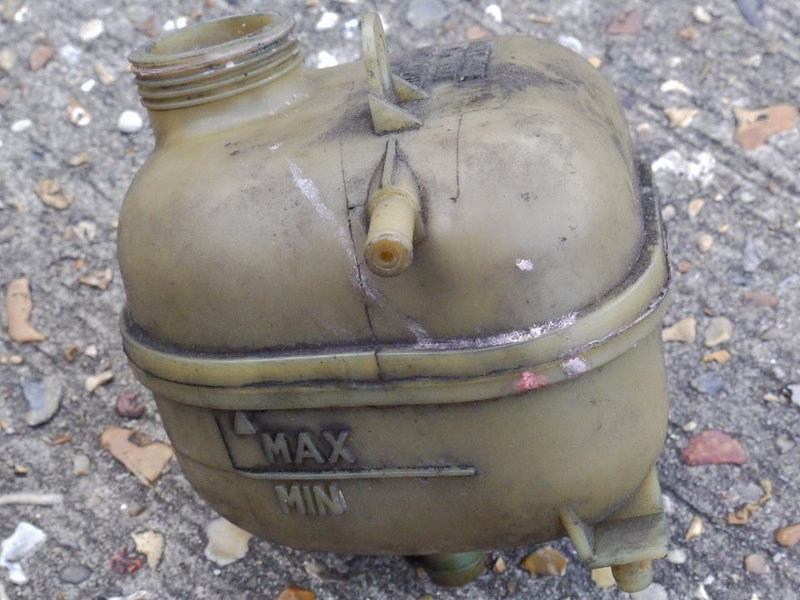

  • Leaking expansion tank, these are weak and split along the centre seam btw
  • Faulty cap leaking the pressure out to early
  • System not bled properly; bleed with engine off & cold on level ground
  • Radiator fan not cutting in
  • Coolant leaking onto interior carpet, normally it’s the heater matrix leaking and is often overlooked

Most of these you can check yourself and need no further explanation. However the tank cap and radiator fan need more explanation.

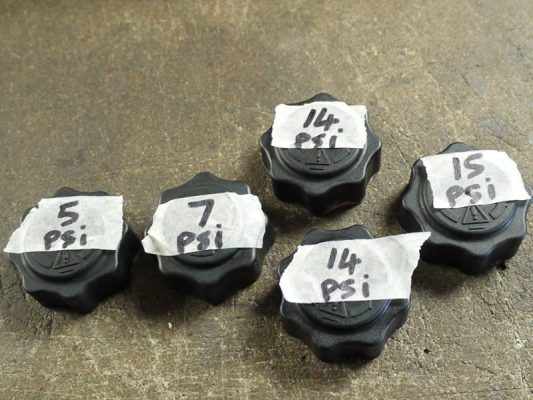

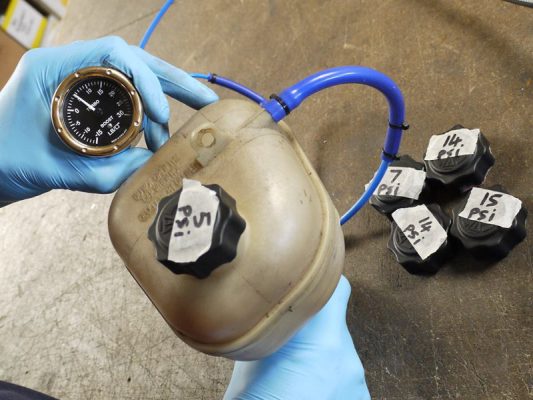

The standard cap is notorious for opening too early. In effect a cap that opens at 3 psi allows the coolant to boil as low as 105 deg C. Even with a first fan cut in temp of 105 deg C boiling over can occur. Combine this cap problem with a first stage radiator fan that’s not working at all, and boil over is guaranteed. Our simple test rig using pump, pressure gauge, tank and various cap samples shows large variations in cap opening pressures. They ‘should’ all open at 15-16psi.
Just a quick reminder here about coolant level as coolant expands naturally when heated it is important to fill the system only to the max mark ( about half way up the tank ) on a fully cold engine on level ground and engine off, and do ensure cap is fully tightened down. For safety reasons never remove the cap with a fully hot engine


We have just launched an up rated version of our original GTT header tank. Whereas our normal version does eliminate problems such as the plastic tank splitting, it still utilizes the original plastic cap. With the new ‘Pro’ version we incorporate a CNC milled bayonet fitting neck with accepts (and includes) a much better Japanese style pressure release cap. These are all metal, available in three different pressures (13 16 & 19psi) and are far more reliable. The other big advantage is it allows you to run the included overflow pipe to a bottle, rather than the coolant spilling inevitably all over the engine bay. Coolant expelled at high speed using the standard cap results in the very slippery antifreeze running along the underside of the car and depositing itself on the rear tyres……The result? A potential 360 degree spin or worse. The GTT tank fits in the original fixing points and has internal baffle plate to prevent airlocks during fast cornering.

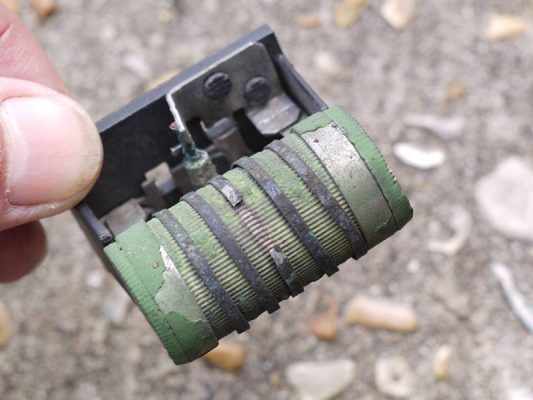

The operation is ECU controlled by 2 relays, 3 fuses and a high current resistor. Add in air-con related fan functions and the wiring becomes even more complex. In theory once the air-con is at a certain pressure the radiator fan should run at low speed. The easiest way to check basic functions is connect up to a scan gauge or laptop through the OBD2 port and select water temp to monitor. You can even use the cars own display to pull up coolant temp if you want. With air-con OFF let the car warm up until at 105 deg C the low speed fan SHOULD cut in, then out again after around a 4 degrees temperature drop. Don’t be surprised if it doesn’t work, failure of the low speed resistor is VERY common. It is hidden deep inside the front modular radiator housing. It is a green cylinder around 4cm long 2 cm diameter. Usually all the wires are burnt out and broken. Cheap replacement can be had on e-bay .The next cut in point is 112 deg C. This high speed cut in point is essential that it works. If you get to 115 deg C and still no fan, then turn off the engine as water is going to coming flying out very soon. Check those fuses/relays/wiring and fan itself before proceeding. Assuming it cuts in at 112 deg C then and as long as all else is ok, including the cap opening pressure (very important) most cars will run fine and won’t boil over. Believe it or not this scenario represents half the earlier R53’s on the road.


There are a few simple tell tale signs to look for here. Think of the engine as a pump. If there is a leak here then gasses are pumped into the coolant system, and likewise water is also drawn back into the combustion chambers. Leaks can occur in many places therefore exact symptoms can vary. The gasket is actually a good design, so failures are not too common, therefore when replacing one you MUST determine why it failed in the first place. If you don’t do this another gasket failure will occur soon after.
Common Symptoms are:-
Excessively hard top radiator hose.
Milky deposits under the oil filler cap/ oil in water.
Steam from the exhaust tailpipes.
Exhaust gas present in the header tank (sniffer test required).
Running on 3 cylinders. Or any combination of the above.

The standard gauge is deliberately ‘centre weighted’ by BMW. In effect this means even with coolant temperature variations of 30 degrees, the needle still stays nice and calmly resting in the centre position irrespective of what’s really happening. One would guess it’s done to stop people complaining of an engine fault should the gauge be slightly off centre marker. In truth they have just centre weighted it way too much. ..It’s the ‘BMW Blindfold’
Written by Roland Gardiner of GT Tuning Ltd

Supercharger & Waterpump.

The R53s (&r52s) Water pumps are driven by the PTO (power take off) on the rear of the supercharger… The superchargers common failure is when the oil seals in the PTO fail and the bearings & gears start to destroy… this reduces drive to the water pump and eventually all drive!. This will result in massive overheating and catastrophic engine failure. This is why it is crucial to have your supercharger inspected/rebuilt if it never has, catching it early before your unit becomes noisy will reduce chances of being unserviceable or a less expensive rebuild … (just topping up the oil only slightly delays the inevitable… the seals perish from age).  See full details of the Supercharger here:

Engine Coolant Inside R53 Superchargers PTO?

These are very rare cases (appox.1/15 ) where the water pumps seal fails and coolant forces its way into the Superchargers PTO ….

The water pump and PTOs mating surfaces corrode together making a seal….. so the coolant may not even be coolant dripping on the floor.

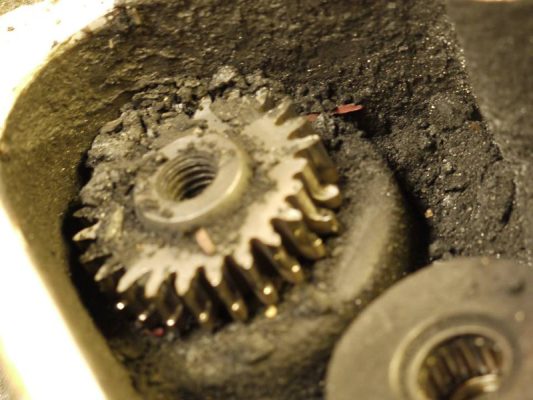

Some images shown are when it has been caught early (wet inside) others are where rust/corrosion has occurred from being left unattended. Even just stopping driving the car and leaving it can cause damage. It needs to be removed instantly and inspected / rebuilt. As you can see sometimes the coolant breaks into the PTO and severely corrodes the rotor drive shafts oil seal face. Leaving water/coolant inside will rapidly rust!

We have even seen a few incidents where the coolant gets through the second oil seal in the PTO (under small gear) into the rotor housing..

The seal behind the fork drive is also replaced during a GTT PTO rebuild. We  a new water pump must be fitted at the same time.

GTT Supercharger to waterpump “PRO FORK DRIVE”
